Fairness and Bias in Algorithms

Data Science for Social Good using R, Python, and Yellowbrick

By Craig Jolley

With all of the recent news about data breaches and tech giants pledging to #DeleteFacebook, something unexpected is happening: people are actually starting to care about online privacy. At the same time, awareness has been building around the real and potential harms of algorithmic decision-making systems. Scholarly organizations like FAT* and AI Now have been getting more attention, and concern about algorithmic harms has been filtering into pop culture. At least, among people who like nerdy webcomics. I knew we were entering a new era when I couldn’t even escape the “AI run amok” meme while watching cartoons with my 5-year-old.

I’ve recently been experimenting with the Yellowbrick library in Python, which is designed to make the machine learning process more visual. It offers a series of objects called Visualizers, which use a syntax that should be familiar to scikit-learn users. In this post, I want to explore whether we can use the tools in Yellowbrick to “audit” a black-box algorithm and assess claims about fairness and bias. At the same time, I prefer R for most visualization tasks. Fortunately, the new reticulate package has allowed Python part-timers, like me, to get something close to the best of both worlds.

Algorithmic fairness can be a complicated topic (for more details, check out this paper), but there are two definitions we should keep in mind. If we’re interested in group fairness, then we define groups of people whom we expect, on average, to be equal with respect to whatever we’re quantifying. Those groups could be based on race, gender, or anything else that you believe is (or should be) irrelevant to your model’s predictions. Group fairness is easy to measure, but can be legally tricky, at least in the United States. In situations with pre-existing structural inequities, group fairness can be similar to the concept of “fairness through awareness” — the only way to treat groups equally is to take people’s membership in those groups into account and correct for an existing unleveled playing field.

At the other end of the spectrum, there’s individual fairness. If we’re being individually fair, then similar individuals get treated similarly. We can define “similarity” in a way that ignores protected categories (like race, gender, etc.) and evaluates people only based on their education, driving record, Netflix viewing history, or other not-explicitly-sensitive variables. We could refer to this approach as “fairness through blindness” — you’re just choosing not to include problematic variables in your model. There are a couple of problems with this approach.

The first problem is for model developers — a lot of your “non-sensitive” variables are going to correlate with your sensitive ones. People who are different in big ways will be different in lots of little ways as well, and it might be hard to predict in advance what all those differences are going to be. This gets especially difficult if you’re committed to fairness through blindness and never collected those sensitive data in the first place, so the correlations are impossible to discover.

The other problem is for model customers — the people who will be using the model but weren’t around when it was being built. Unless the software developers present a lot of information about the model-building process in a way where customers can easily understand it, they won’t be able to tell whether a model is individually-fair or not. The only way to really test individual fairness is to query the model with counterfactual examples — determining whether it would give different outputs if you modified the race (or other correlated characteristics) of people who had already been assessed.

This blog post will focus on the COMPAS dataset released a couple of years ago by ProPublica. The COMPAS algorithm offers predictions of a criminal suspect’s risk of recidivism and returns a score on a scale from 1 (low risk) to 10 (high risk). The ProPublica dataset contains predictions for more than 7,000 people in Broward County, FL, along with some demographic features (race, age, gender), data about their prior criminal record, and whether they actually did reoffend following their algorithmic assessment.

What I’m doing here is a little different from what ProPublica did in their analysis of the dataset. Their approach was to use logistic regression to determine the influence of race on the COMPAS score (which they simplified into a binary low/high) after controlling for prior record, seriousness of the crime, and actual recidivism. Instead, I’ll be approaching it the way that model developers might, by looking at the distribution of model errors across racial categories. Spoiler alert: the results are pretty much the same, and the news isn’t good.

We’ll start by loading some R packages and our dataset.

knitr::opts_chunk$set(echo = TRUE)

library(dplyr)
library(ggplot2)
library(forcats)
library(reshape2)
library(reticulate)
use_python('/usr/bin/python3')

d <- read.csv('data/compas-scores-two-years.csv')

Evaluating group fairness

First, we should get a sense of what the customers of a tool like COMPAS would be able to see, even if they were not given access to any of the algorithm’s training data or details about its performance. Given a set of evaluations, are there racial imbalances in the scores given by COMPAS?

The graph below shows the prediction score with added noise for each racial group:

X1 <- d %>% select(race,decile_score)
X1$race <- factor(X1$race,levels(X1$race)[c(1,3,4,2,5,6)])
delta <- 0.35
X1_m <- X1 %>% group_by(race) %>%
  summarize(m=mean(decile_score))
X1_m$xmin <- (1:6)-delta
X1_m$xmax <- (1:6)+delta
ggplot(X1,aes(x=race,y=decile_score)) +

geom_jitter(size=2,shape=1,color='cornflowerblue',alpha=0.25) +

geom_segment(data=X1_m,aes(x=xmin,xend=xmax,y=m,yend=m),color='red',size=2) +

scale_y_continuous(breaks=2*(1:5)) +

xlab('Race') + ylab('Decile Score')

This doesn’t necessarily mean that the algorithm is returning bad predictions — it’s entirely possible that the imbalances we’re seeing are the result of existing structural inequities that are just being mirrored by the algorithm. For example, minority neighborhoods often have a larger and more aggressive police presence, which leads to a higher arrest and conviction rate, (aside from any differences in the crime rate). It’s also possible that the algorithm is imperfectly correcting for existing imbalances, and we’re seeing a compromise between individual and group fairness.

Visualizing recidivism rates

Because the ProPublica dataset also contains information about recidivism, we can see how recidivism rates vary across groups. We’ll work with the same variable that Northpointe, the developers of COMPAS, claim was used in model development — whether an individual was convicted of another offense within two years after his/her release. In an ideal world, we would have information about whether they actually committed another crime; recidivism is an imperfect proxy, because other factors (including race, geography, etc.) can influence whether people who commit crimes are arrested and convicted.

hi95 <- function(x) { binom.test(sum(x),length(x),0.5)$conf.int[2] }
lo95 <- function(x) { binom.test(sum(x),length(x),0.5)$conf.int[1] }
X2 <- d %>% select(decile_score,two_year_recid,race)
X2 %>% group_by(race) %>%
  summarize(m=mean(two_year_recid),lo=lo95(two_year_recid),hi=hi95(two_year_recid)) %>%
  ggplot(aes(x=fct_reorder(race,m),y=m)) +
    geom_bar(stat='identity',fill='seagreen2') +
    geom_errorbar(aes(ymin=lo,ymax=hi),width=0.5,color='gray40') +
    xlab('Race') + ylab('Two-year recidivism rate')

The recidivism rate is significantly higher for African-Americans compared to other racial groups. Native Americans also have a high average rate, but with a high variance due to the small sample size.

Testing prediction accuracy

To get a better sense of what’s going on, we’ll also want to know how well the predictions are actually working. The graph below shows the recidivism rate against the decile score:

ggplot(X2,aes(x=decile_score,y=two_year_recid)) +
  geom_jitter(size=2,shape=1,color='cornflowerblue',alpha=0.25) +
  xlab('Decile Score') + ylab('Two-year recidivism')

We can see a trend where people with higher scores were more likely to re-offend within two years. Plots like this can be easier to interpret if we re-cast them as line plots:

X3 <- X2 %>% select(decile_score,two_year_recid) %>%
  table %>%
  as.data.frame
ggplot(X3,aes(x=decile_score,y=Freq,group=two_year_recid,color=two_year_recid)) +
  geom_line()

In general, a person with a score of 6 or higher was more likely to re-offend than not to. Also note that the gap between the curves for reoffenders and non-reoffenders is larger for low scores than for high scores. In other words, if someone receives a low score, we can be fairly confident that they won’t reoffend. But for those who received high scores, there’s more uncertainty about what will happen.

Race-specific error rates

After seeing a sliver of how the predictions are actually working, we also want to see the prediction error rates between the different racial groups:

X4 <- X2 %>%
  mutate(race=as.character(race),
         race=ifelse(race=='Asian','Other',race),
         race=ifelse(race=='Native American','Other',race)) %>%
  mutate(tn=(decile_score < 6) & (two_year_recid==0),
         fn=(decile_score < 6) & (two_year_recid==1),
         tp=(decile_score > 5) & (two_year_recid==1),
         fp=(decile_score > 5) & (two_year_recid==0)) %>%
  group_by(race) %>%
  summarize(fn_m=mean(fn),fp_m=mean(fp),fn_lo=lo95(fn),fn_hi=hi95(fn),fp_lo=lo95(fp),fp_hi=hi95(fp),
            tn_m=mean(tn),tp_m=mean(tp),tn_lo=lo95(tn),tn_hi=hi95(tn),tp_lo=lo95(tp),tp_hi=hi95(tp))

plotme <- rbind(X4 %>% select(race,fn_m,fn_lo,fn_hi) %>%
                  rename(m=fn_m,lo=fn_lo,hi=fn_hi) %>%
                  mutate(group='fn'),
                X4 %>% select(race,fp_m,fp_lo,fp_hi) %>%
                  rename(m=fp_m,lo=fp_lo,hi=fp_hi) %>%
                  mutate(group='fp'))
ggplot(plotme,aes(x=race,y=m,group=group,fill=group)) +
  geom_bar(stat='identity',position='stack') +
  xlab('Race') + ylab('Error rates')

Overall, the error rates are reasonably similar across racial groups, but the balance of errors seems different. We can understand this a little better by looking at the false positives (people who were predicted to be high-risk but ultimately didn’t reoffend) separately from false negatives (people predicted to be low-risk who reoffended within two years).

ggplot(plotme %>% filter(group=='fp'),
       aes(x=fct_reorder(race,m),y=m)) +
  geom_bar(stat='identity',position='dodge',fill='goldenrod') +
  geom_errorbar(aes(ymin=lo,ymax=hi),width=0.5,color='gray40') +
  xlab('Race') + ylab('Error rates') +
  ggtitle('False positives')

The rate of false positives is significantly higher among African-Americans than among other racial groups. Next, let’s see the false negatives:

ggplot(plotme %>% filter(group=='fn'),
       aes(x=fct_reorder(race,m),y=m)) +
  geom_bar(stat='identity',position='dodge',fill='goldenrod') +
  geom_errorbar(aes(ymin=lo,ymax=hi),width=0.5,color='gray40') +
  xlab('Race') + ylab('Error rates') +
  ggtitle('False negatives')

As seen above, the rate of false negatives is lower among African-Americans than among other groups. Taken together, this means that the model’s mistakes tend (on average) to work to the detriment of black defendants and to the benefit of non-black defendants. This isn’t proof that the model is individually unfair — establishing that would require the ability to test counterfactual examples — but it isn’t exactly reassuring.

Introducing Yellowbrick

Now that we’ve got a sense of what is going on in this dataset, we can try out some of the machine learning visualization tools that come with Yellowbrick. As I mentioned in the introduction, we’ll use the reticulate package to include Python tools into our R workflow.

Yellowbrick runs on the assumption that it is visualizing the output of an estimator trained with scikit-learn. Because we don’t have an actual machine learning model here, I’ll have to define a new estimator class that is trained on a single input variable X, and returns exactly the same value as its output variable y.:

from sklearn.base import BaseEstimator, ClassifierMixin
import numpy as np

class Identity(BaseEstimator, ClassifierMixin):
    def fit(self, X, y=None):
        return self
    def predict(self, X):
        if X.ndim > 1:
            raise ValueError("pass through, provide y_true!")
        return (X > 0.5)
    def predict_proba(self, X):
        if X.ndim > 1:
            raise ValueError("pass through, provide y_true!")
        Xr = X.values.reshape(-1,1)
        Xinv = (1.0 - X).values.reshape(-1,1)
        return np.concatenate([Xinv,Xr],axis=1)

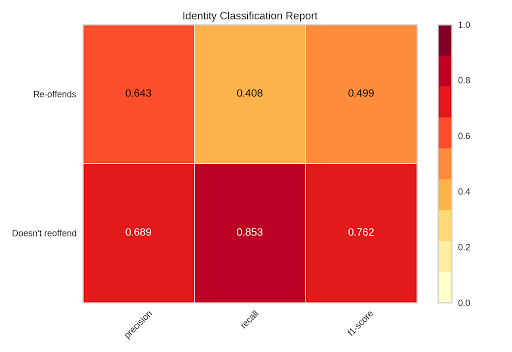

First, we’ll explore the ClassificationReport visualizer, which displays a heatmap of different accuracy metrics for a model. Below we’ll look the Classification Reports for Caucasians and African-Americans:

from yellowbrick.classifier import ClassificationReport
import pandas as pd
import matplotlib.pyplot as plt

d = pd.DataFrame.from_dict(r.d) # access the variable 'd' defined in the R environment

def race_cr(racestr,threshold=5):
    race_sel = d['race'] == racestr
    X = (d['decile_score'] > threshold).astype(int)[race_sel]
    y = d['two_year_recid'][race_sel]
    viz = ClassificationReport(Identity(),classes=['Doesn\'t reoffend','Re-offends'])
    viz.fit(X,y)
    viz.score(X,y)
    viz.poof()
    plt.close() # reticulate seems to need this, or else plots will overlap

race_cr('Caucasian')

race_cr('African-American')

We already knew that there is a higher false negative (FN) rate for Caucasians, and a higher false positive (FP) rate for African-Americans. We also know that African-Americans have a higher overall recidivism rate, along with a lower true-negative (TN) rate and a higher true-positive (TP) rate. In the Classification Reports, we see that the accuracy for the different groups are balanced across the classes very differently — for Caucasians, the model performs better for non-reoffenders (the larger group), while for African-Americans errors are more evenly balanced across the two classes.

Precision is defined as TP/(TP + FP). In the case of re-offenders, this is the fraction of those who were predicted to re-offend by the algorithm who actually did. Comparing positive predictions of re-offense, this measure is slightly higher for African-Americans than for Caucasians, as their true and false positive rates are both higher.

Recall is defined as TP/(TP + FN). It is the fraction of those who really did re-offend and were also predicted to re-offend by the algorithm. Here, there is a much larger racial disparity. Caucasians have a lower TP and a higher FN rate than African-Americans.

It’s possible that when developing the COMPAS algorithm, the Northpointe team looked at the similar precision rates across both groups and concluded that their algorithm was non-discriminatory. It’s worth thinking about the implications of different definitions of accuracy. Suppose, in an extreme case, that an algorithm simply predicted that everyone would reoffend. Such a model would have a false negative rate of zero (because it never makes a negative prediction) and a rather high false positive rate. This would lead to a high recall rate (it’s catching everybody) and a low precision rate (it’s catching people indiscriminately). On the other hand, a very conservative model with a high false negative rate and a low false positive rate would give us high precision and low recall. Based on these race-disaggregated classification reports, it appears that Caucasian defendants were seeing a conservative model (one that gave them the benefit of the doubt), while African-Americans were seeing a much more balanced version.

We can also use Yellowbrick to calculate class-specific ROC curves, which will show the model’s predictive quality:

from yellowbrick.classifier import ROCAUC

def race_roc(racestr):
    race_sel = d['race'] == racestr
    X = (d['decile_score']/9)[race_sel]
    y = d['two_year_recid'][race_sel]
    viz = ROCAUC(Identity(),classes=['No reoffense','Reoffense'])
    viz.fit(X,y)
    viz.score(X,y)
    viz.poof()
    plt.close()

race_roc('Caucasian')

The ROC curve for Caucasians shows that the overall performance of this model is significant, but not spectacular. Now, let’s see the ROC curve for African-Americans:

race_roc('African-American')

Things look fairly similar for African-American defendants.

Varying thresholds

While it’s really cool to be able to calculate ROC curves so easily, I was a little disappointed at how similar they plot looked. For these two racial groups, it might not have been the best tool for highlighting the disparities between different sub-populations. If we want to find a way to make models like this more fair, the easiest thing to think about is the threshold between “low-risk” and “high-risk”. Thus far, we’ve been assuming a threshold of 5 (on a 1-10 scale).

Yellowbrick’s ThresholdVisualizer allows us see what some of the implications of varying this threshold would be. As before, we’ll want to see how it impacts Caucasian and African-American populations differently:

from yellowbrick.classifier import ThresholdVisualizer

def race_tv(racestr):
    race_sel = d['race'] == racestr
    X = (d['decile_score'][race_sel])/9
    y = d['two_year_recid'][race_sel].as_matrix()
    viz = ThresholdVisualizer(Identity(),classes=['Doesn\'t reoffend','Re-offends'])
    viz.fit(X,y)
    viz.score(X,y)
    viz.poof()
    plt.close()

race_tv('African-American')

For African-Americans, the precision and recall curves cross each other roughly in the middle of the range. This is consistent with our observations that errors seemed fairly balanced with a threshold of 5.

Things look slightly different for Caucasians:

race_tv('Caucasian')

For Caucasians, the “precision” curve is higher and flatter, and crosses the “recall” curve at a lower value of the threshold. The precision curve increases monotonically with the threshold (as the number of false positives decreases) and the recall curve decreases monotonically (as the number of false negatives increases).

The ideal tradeoff between false positives and false negatives is ultimately a social choice — we have to choose how to weight the risk of letting dangerous people go free against the risk of needlessly imprisoning harmless people. If, for the sake of argument, we assume that African-Americans are seeing a “fair” version of the model (in the sense that errors are balanced across classes), then Caucasians are seeing an overly lenient version of the model. Making the model tougher on Caucasians would require lowering the threshold, so that a larger fraction of marginal people are deemed to be high-risk.

The ThresholdVisualizer plots don’t tell us precisely where to do this, because they are concerned with the types of errors across a single class, rather than the balance of errors across classes. By showing us how error rates depend on thresholds, however, they can give us some ideas about where to experiment.

For example, if we lower the cutoff for Caucasians to 3 (rather than 5), we see the following:

race_cr('Caucasian',threshold=3)

Comparing this to the classification reports we saw previously, we can see a somewhat better balance of errors for Caucasians, resulting from a lower number of false negatives and a higher number of false positives.

Conclusion

A simple analysis like this can’t uncover all of the problems with algorithmic decision-making in the criminal justice system, let alone propose a set of truly viable solutions. Hopefully, it’s clear that simple visualization tools are able to uncover systemic bias and suggest some of the implications of different error measures. The real challenge is convincing governments and communities to be more skeptical users and consumers of these tools.
